JUMP STARTERS
VJS-004

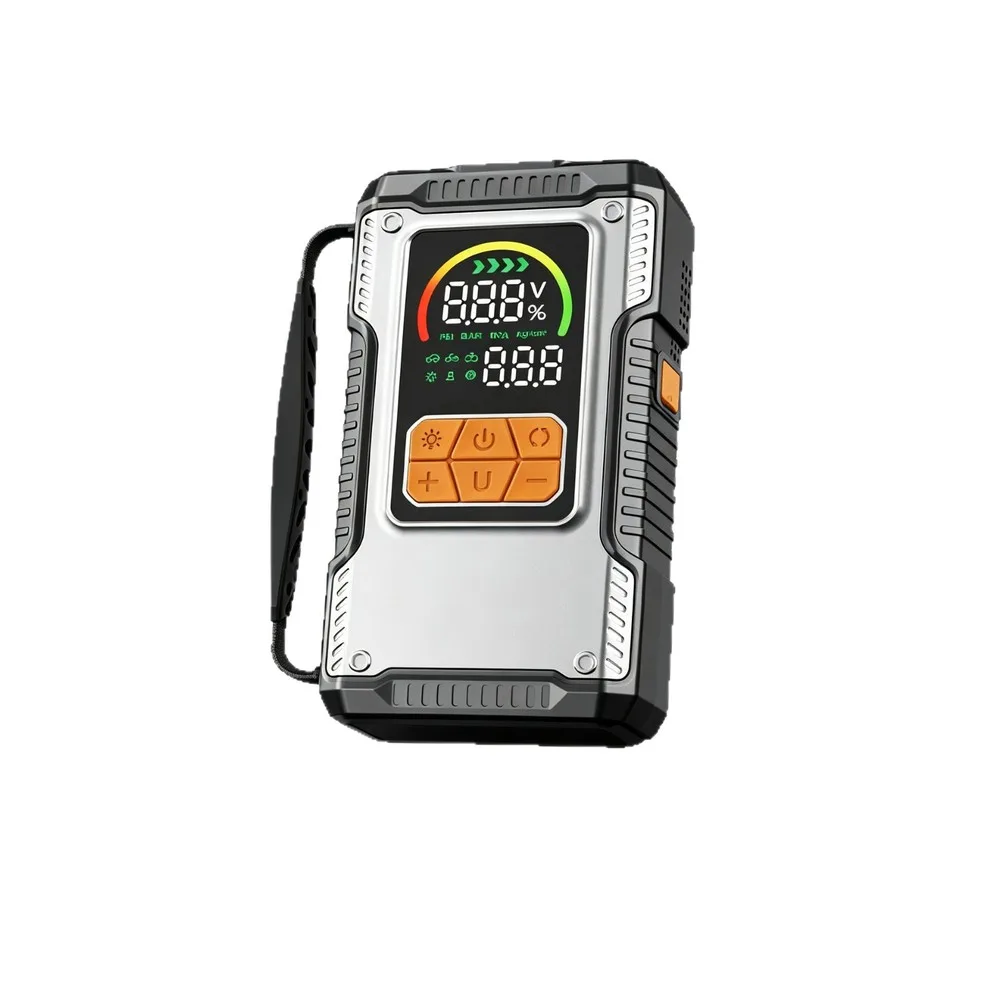

Multifunctional Jump Starter with Tire Inflator
A compact-format multifunctional jump starter combining 1200A peak output, 3-150 PSI tire inflation, a 22 mm cylinder, 8000mAh catalog-listed battery, power-bank and emergency-light functions for B2B product programs.
1200 APeak Current
3‑150 PSIInflation Range
22 mmCylinder
8000 mAhBattery
Type‑CCharging Port
Documentation Support
The current VJS-004 catalog entry lists CE, RoHS, FCC. Availability should be confirmed for the target market and order.
Quality Control Support
Production follow-up and agreed function, appearance and packaging checks can be arranged before shipment.
Delivery Coordination
Production scheduling and delivery arrangements can be reviewed according to quantity, customization scope and project timeline.
Private Label Ready
Branding, packaging, manual, color and selected accessory options can be reviewed for the project.
WHY VJS-004
Compact 1200A Platform with a 22 mm Inflation System
01
1200A Peak Starting Output
The current catalog lists 200-300A starting current and 1200A peak current.
02
22 mm Inflation Cylinder
VJS-004 is listed with a 3-150 PSI inflation range and a 22 mm cylinder.
03
8000mAh Catalog-Listed Battery
The current VJS-004 catalog entry lists an 8000mAh battery configuration.
04
Emergency + Power-Bank Functions
The catalog lists LED light, strobe light, SOS signal light, pressure checking and power-bank functions.
APPLICATIONS
Applications Listed for VJS-004
CAR
Car
MOTO
Motorcycle
BIKE
Bike
BALL
Balls
TECHNICAL SPECIFICATIONS
VJS-004 Technical Specifications
Product
| Size | 105 × 47 × 205 mm |
|---|---|
| Material | PC + ABS |
| Voltage | 14.8 V |
| Battery | 8000 mAh |
| Charge Port | Type-C |
| Input | 5V / 2A |
| Charge Time | 3-4 h |
Jump Starting
| Starting Current | 200-300 A |
|---|---|
| Peak Current | 1200 A |
Inflation & Functions
| Inflation | 3-150 PSI |
|---|---|
| Cylinder | 22 mm |
| Air Tube | 35 cm |
| Current | 6.5 A |
Operating Environment
| Operating Temperature | -10°C to 45°C |
|---|
PRODUCT FEATURES
VJS-004 Feature Overview
A compact overview of the main catalog-listed functions. Detailed product and sourcing questions are answered in the Q&A section below.

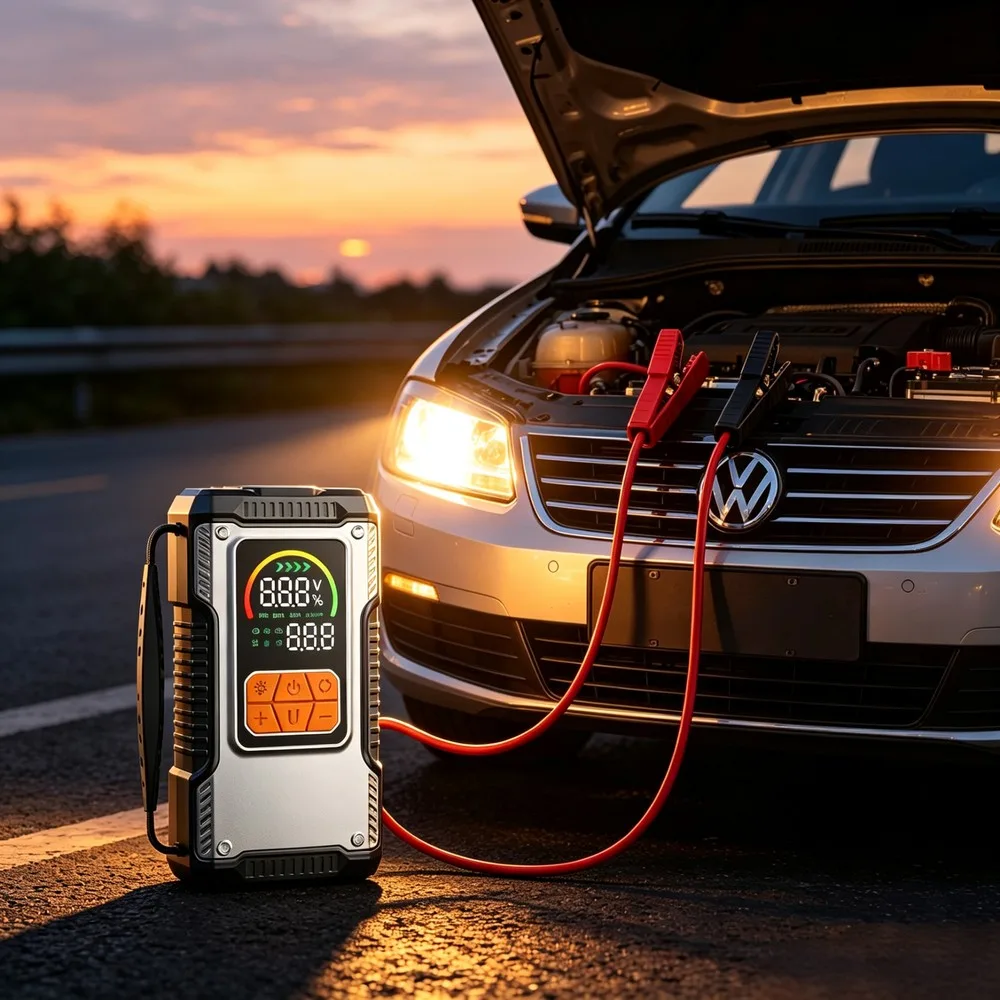

Jump Starting
The current catalog lists 200-300A starting current and 1200A peak current.

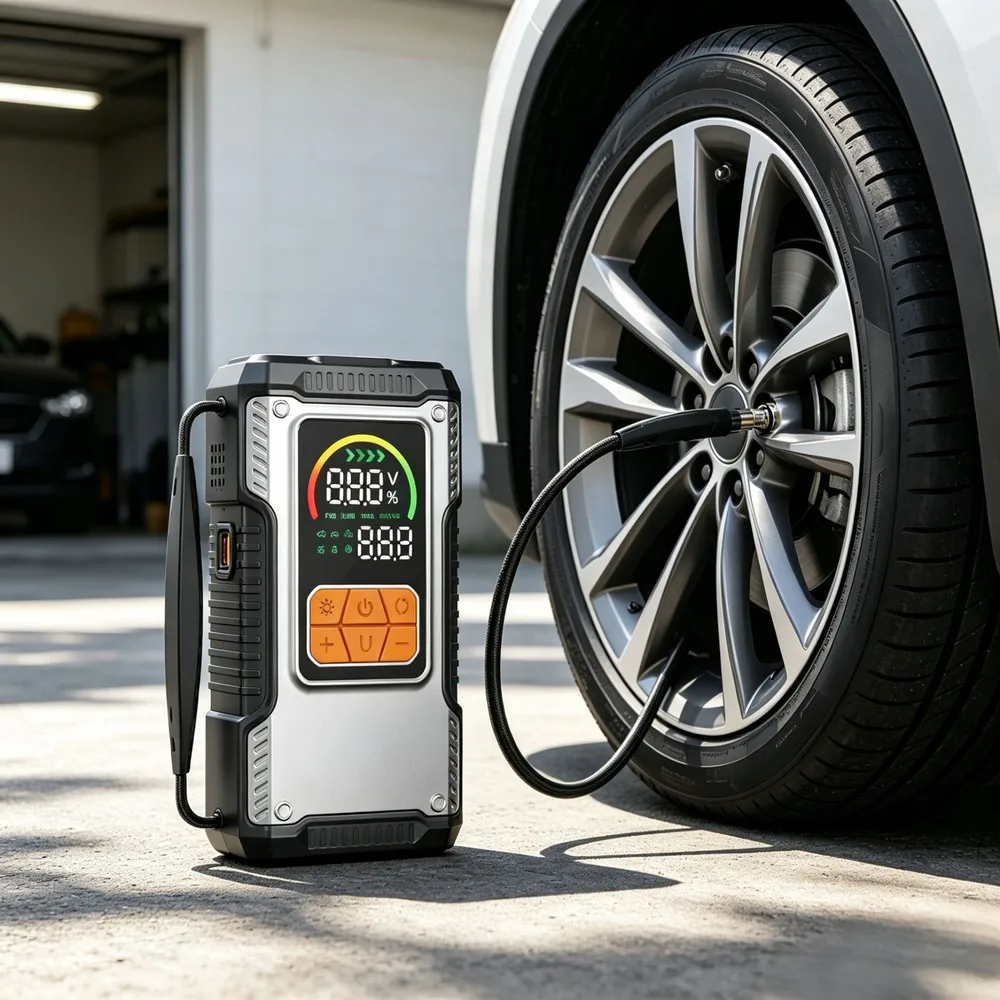

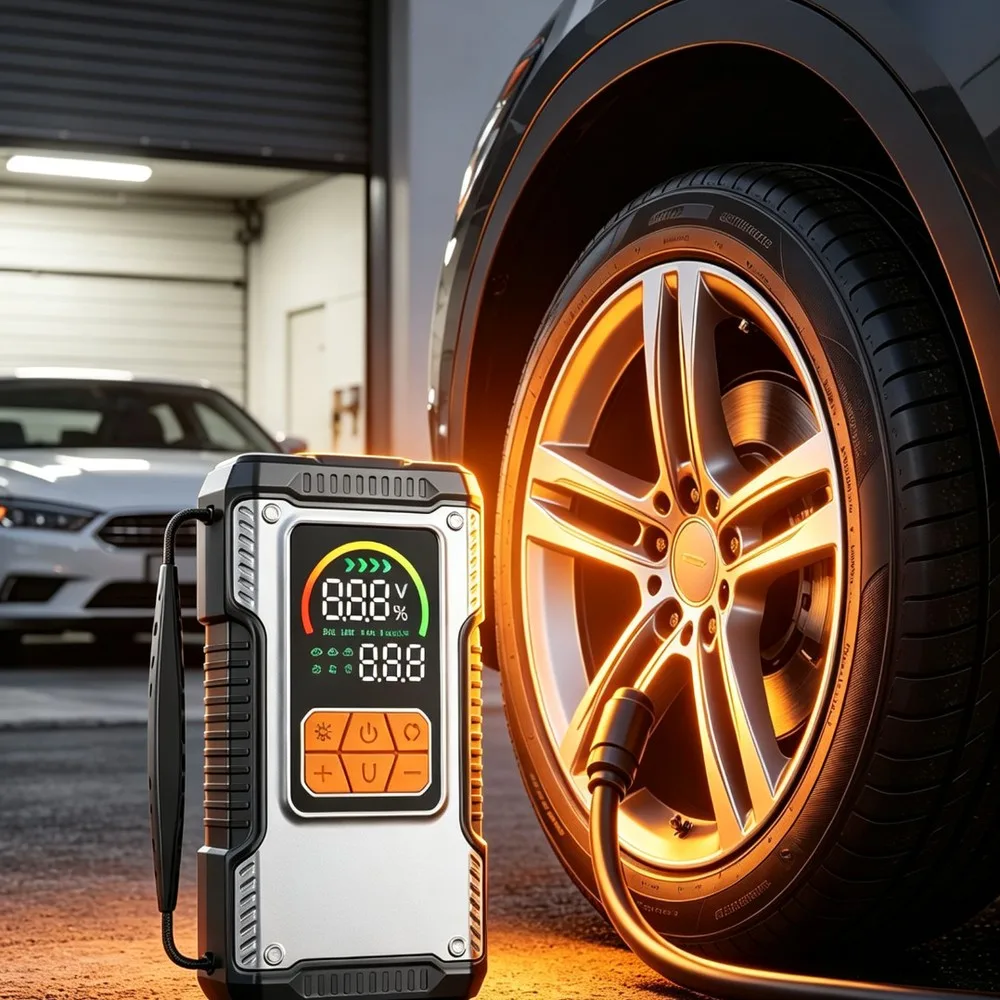

Tire Inflation
3-150 PSI inflation range with a 22 mm cylinder.

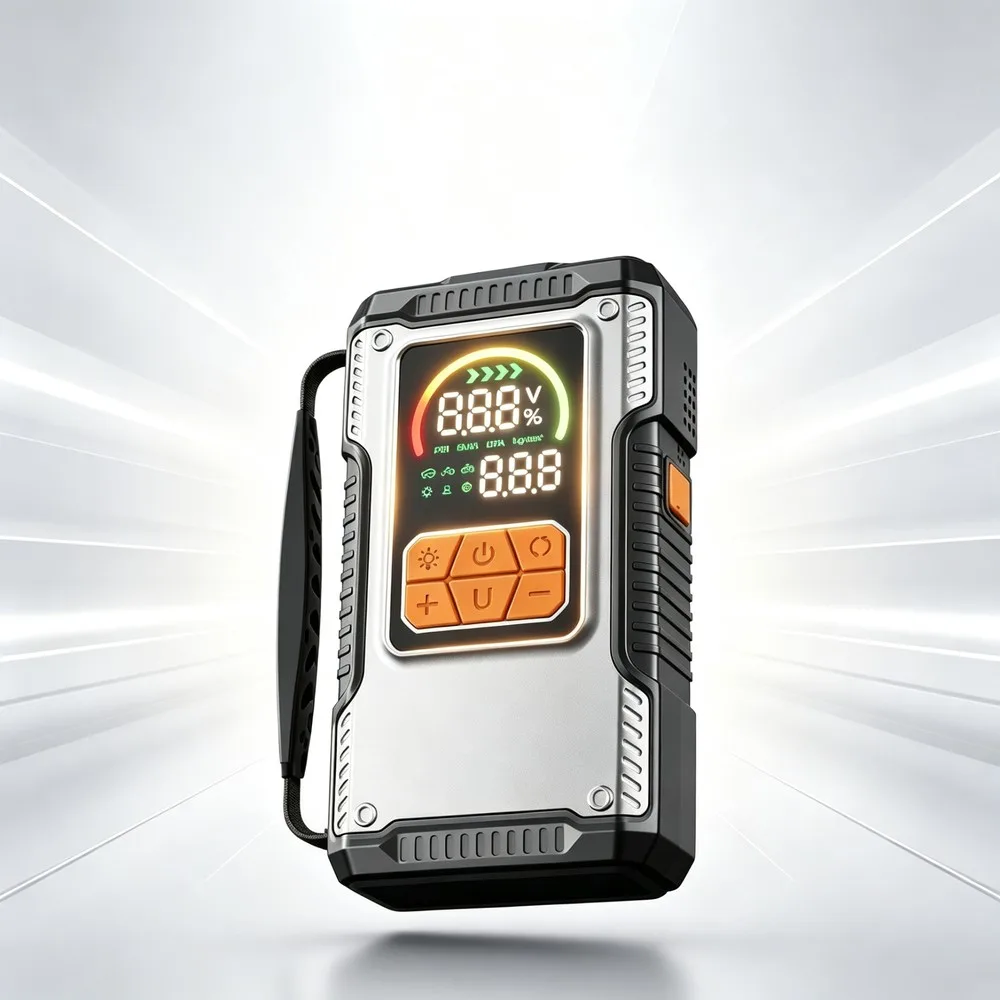

LED Display
The current catalog lists an LED display for product status and supported operating functions.

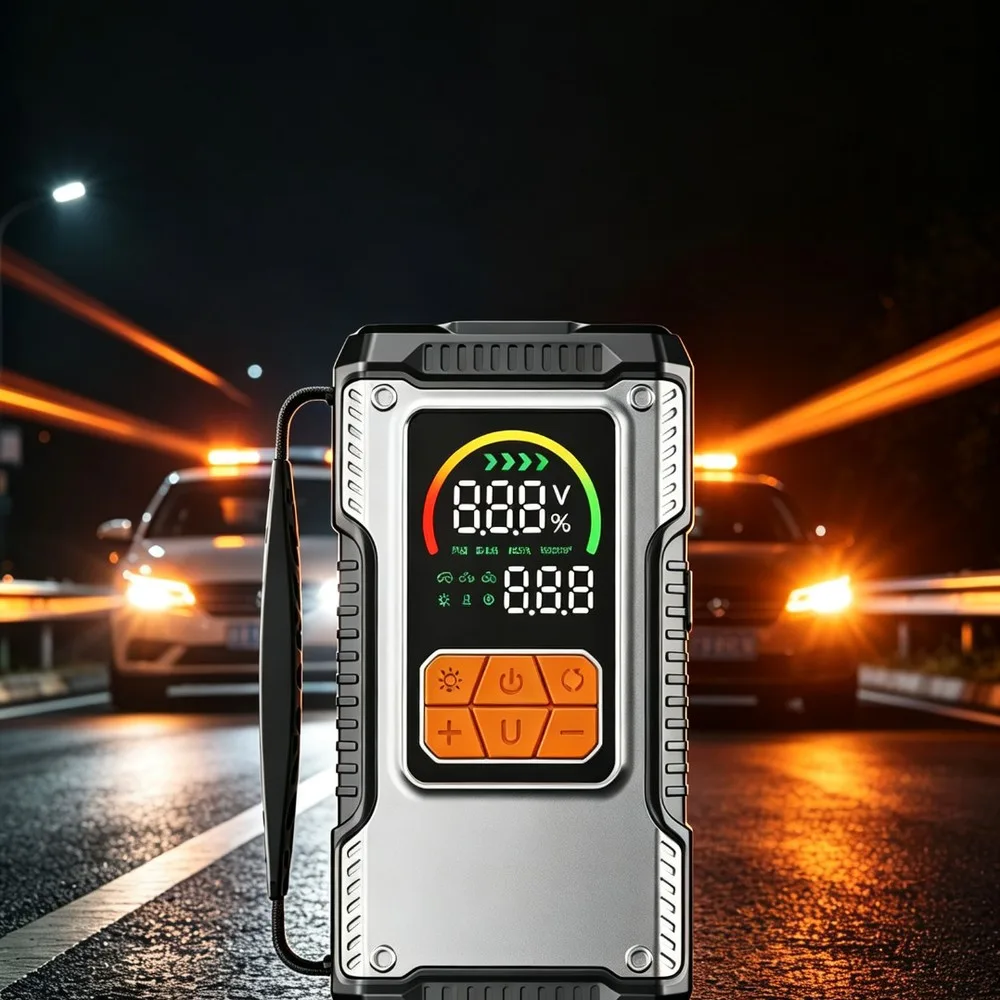

Emergency Lighting
LED light, strobe light and SOS signal-light functions are listed in the current catalog.
Compact Product Platform
The 105 × 47 × 205 mm product format combines jump starting, tire inflation and power-bank functions.

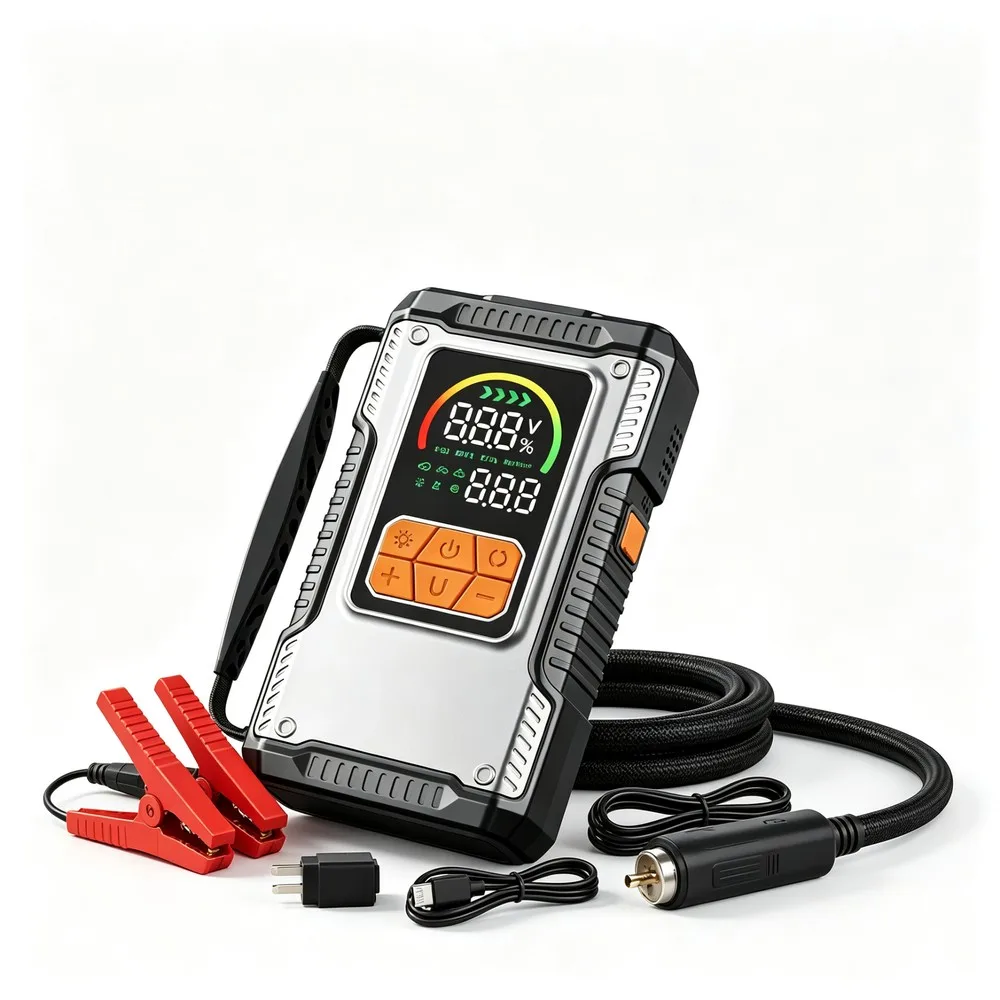

WHAT’S INCLUDED
Standard Accessory Set
Standard accessories are supplied according to the confirmed product configuration. Final accessory contents should be confirmed with the quotation or sample.
PRIVATE LABEL
Prepare VJS-004 for Your Brand
Branding and product presentation options can be reviewed according to the project scope and target market.
LogoProduct ColorPackagingManualAccessories
PACKAGING & LOGISTICS
Packaging Data for VJS-004
| Color Box | 10 × 15 × 23.6 cm |
|---|---|
| Gross Weight | 1268.5 g |
| Carton Size | 32 × 32 × 50 cm |
| Pack Qty | 12 pcs |
| Carton G.W. | 15.76 kg |
COMPLIANCE & DOCUMENTATION
Catalog-Listed Documentation / Marks
CERoHSFCC
Documentation availability and applicability should be confirmed for the selected configuration and destination market before ordering.
RELATED PRODUCTS
Compare Other Jump Starter Platforms
PRODUCT Q&A
VJS-004 Product & Sourcing Questions
Direct answers to common product-evaluation and B2B sourcing questions.
What are the listed starting and peak currents for VJS-004?
The current catalog lists 200-300A starting current and 1200A peak current.
What is the VJS-004 tire inflation range?
The current catalog lists a 3-150 PSI inflation range with a 22 mm cylinder.
What battery capacity is listed for VJS-004?
The current catalog lists an 8000mAh battery configuration.
Does the current VJS-004 catalog list a vacuum function?
No vacuum function is listed in the current VJS-004 catalog entry. This statement reflects the current catalog only and should not be interpreted beyond the listed configuration.
What emergency-lighting functions are listed?
The current catalog lists LED light, strobe light and SOS signal-light functions.
What charging interface and input are listed?
VJS-004 is listed with a Type-C charging port and 5V / 2A input.
What compliance marks are listed for VJS-004?
The current catalog lists CE, RoHS and FCC. Documentation availability should be confirmed for the selected configuration and destination market.
Can VJS-004 be prepared for a private-label project?
Branding, packaging, manual, color and selected accessory options can be reviewed according to project requirements.
Can I request a sample before bulk production?
Yes. A sample request can be submitted before the bulk-order project is finalized.
How are quality and production timing handled?
Production follow-up and agreed function, appearance and packaging checks can be arranged. Lead time depends on quantity, customization scope, packaging requirements and the agreed project schedule.
