JUMP STARTERS
VJS-007

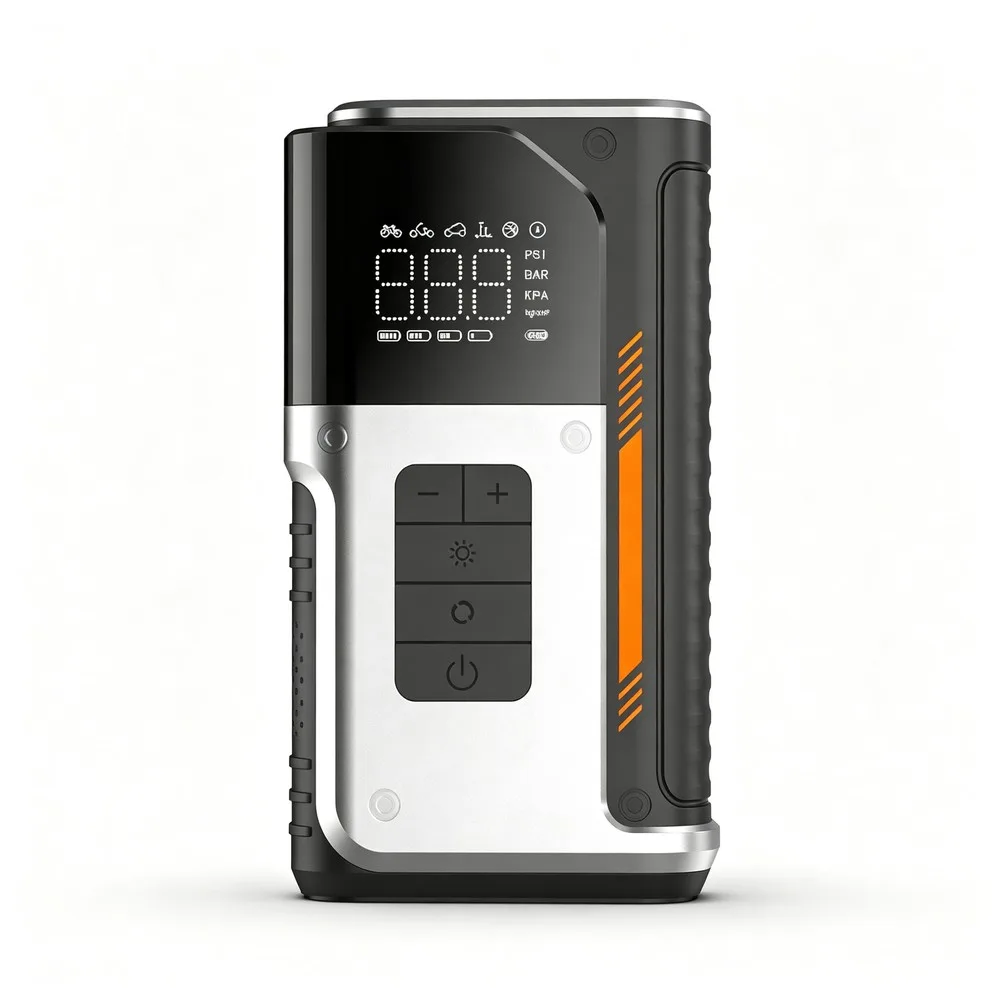

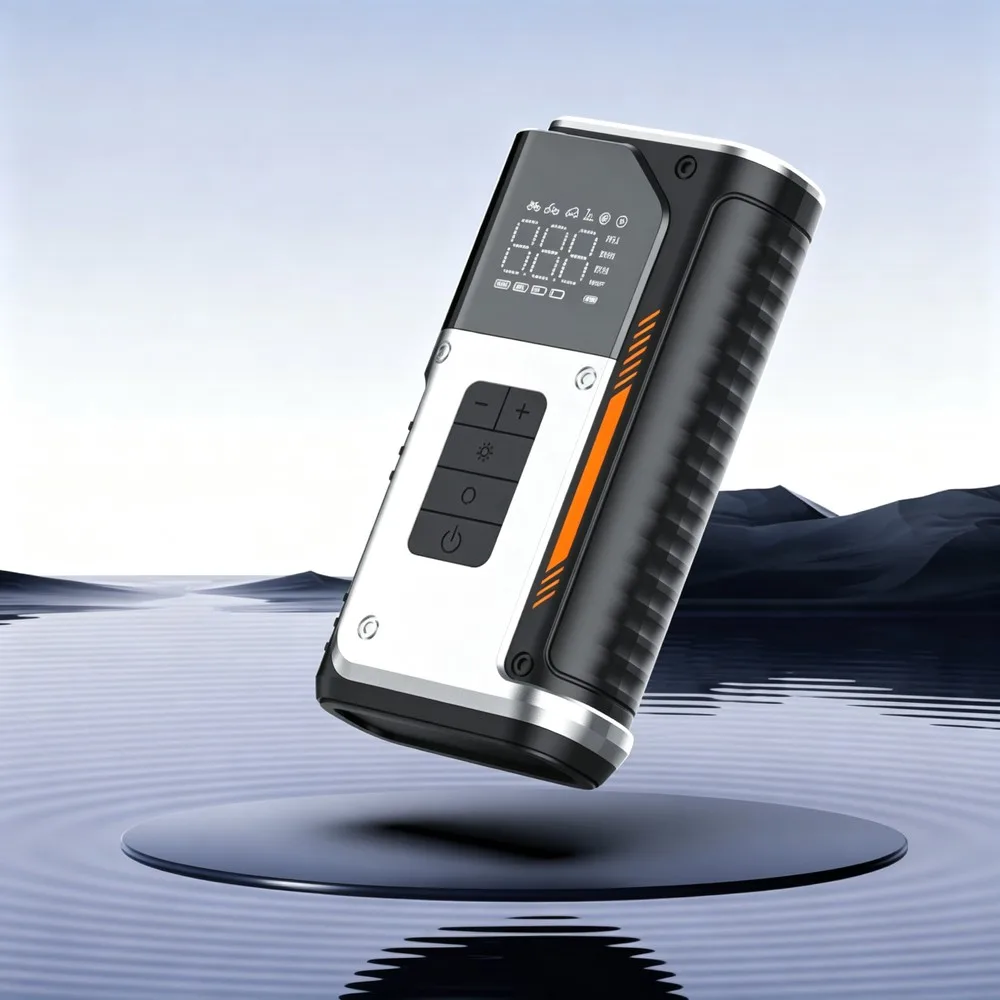

Multifunctional Jump Starter with Tire Inflator
A slim-format jump starter platform with 800A peak output, 3-150 PSI tire inflation, a 22 mm cylinder, 4 × 1500mAh catalog-listed battery configuration, power-bank and emergency-light functions.
800 APeak Current
3‑150 PSIInflation Range
22 mmCylinder
4 × 1500 mAhBattery
Type‑CCharging Port
Documentation Support
The current VJS-007 catalog entry lists CE, RoHS, FCC. Availability should be confirmed for the target market and order.
Quality Control Support
Production follow-up and agreed function, appearance and packaging checks can be arranged before shipment.
Delivery Coordination
Production scheduling and delivery arrangements can be reviewed according to quantity, customization scope and project timeline.
Private Label Ready
Branding, packaging, manual, color and selected accessory options can be reviewed for the project.
WHY VJS-007
Slim Product Format for 800A Jump Starting and Tire Inflation
01

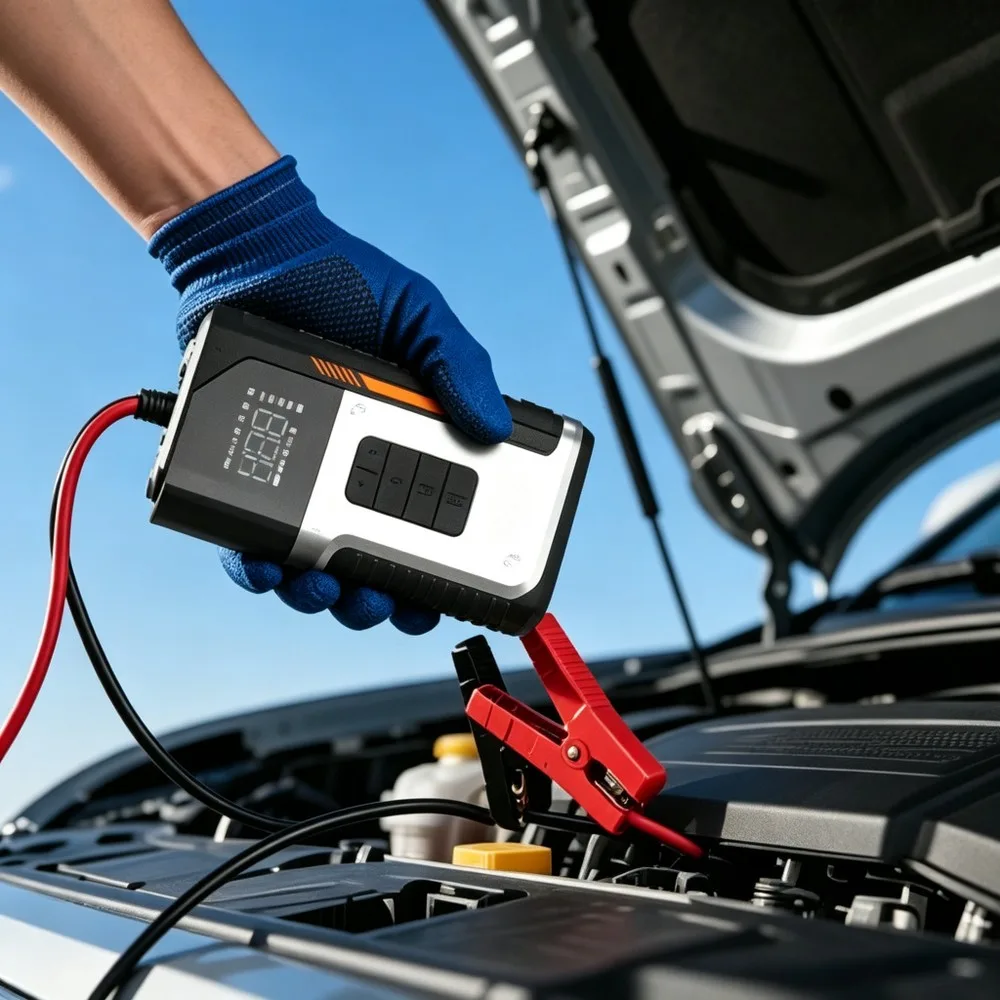

800A Peak Starting Output
The current catalog lists 300A starting current and 800A peak current.
02
22 mm Inflation Cylinder
VJS-007 is listed with a 3-150 PSI inflation range and a 22 mm cylinder.
03
Slim 186 × 103 × 45 mm Format
The current catalog lists a compact vertical product format measuring 186 × 103 × 45 mm.
04
Power-Bank + Emergency Functions
The catalog lists pressure checking, power-bank output, LED light, strobe light and SOS signal-light functions.
APPLICATIONS
Applications Listed for VJS-007
CAR
Car
MOTO
Motorcycle
BIKE
Bike
BALL
Balls
TECHNICAL SPECIFICATIONS
VJS-007 Technical Specifications
Product
| Size | 186 × 103 × 45 mm |
|---|---|
| Material | PC + ABS |
| Voltage | 14.8 V |
| Battery | 4 × 1500 mAh |
| Charge Port | Type-C |
| Input | 5V / 3A |
| Charge Time | 3-4 h |
Jump Starting
| Starting Current | 300 A |
|---|---|
| Peak Current | 800 A |
Inflation & Functions
| Inflation | 3-150 PSI |
|---|---|
| Cylinder | 22 mm |
| Air Tube | 35 cm |
| Current | 6.5 A |
Operating Environment
| Operating Temperature | -10°C to 45°C |
|---|
PRODUCT FEATURES
VJS-007 Feature Overview
A compact overview of the main catalog-listed functions. Detailed product and sourcing questions are answered in the Q&A section below.
Jump Starting
The current catalog lists 300A starting current and 800A peak current.

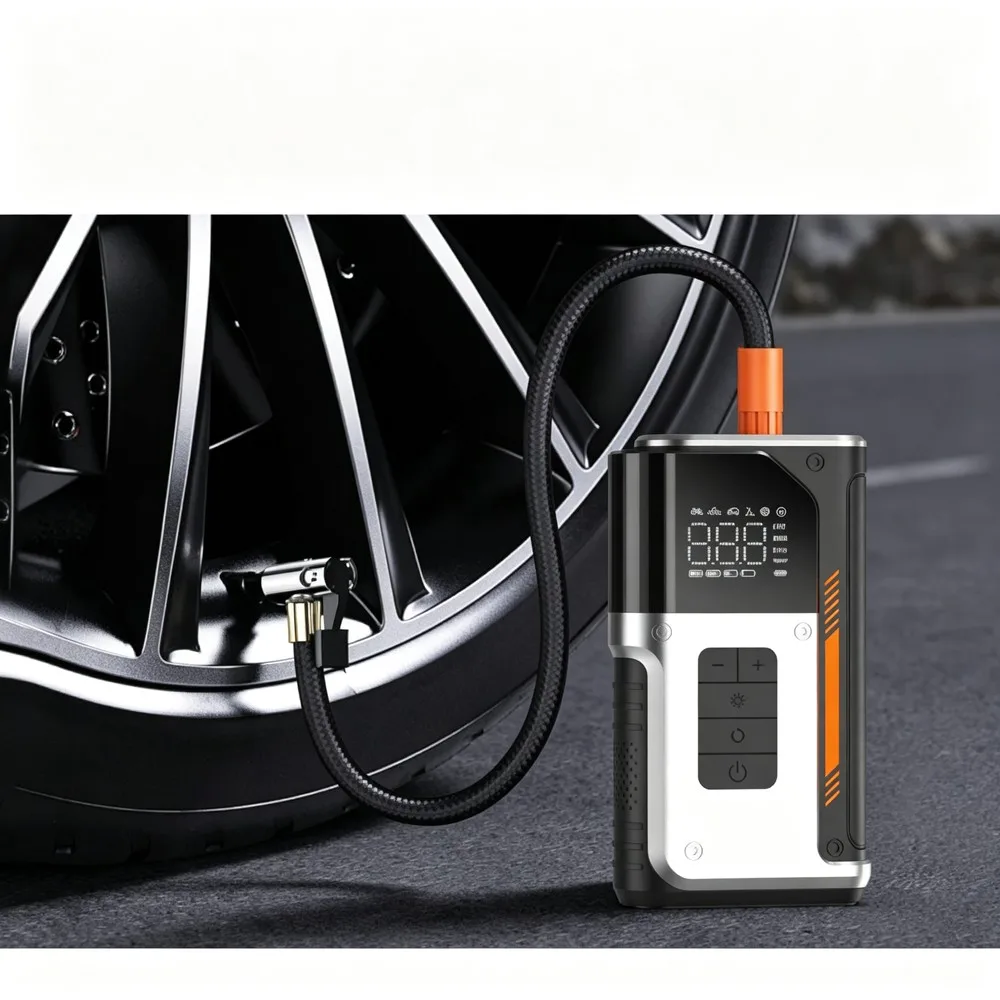

Tire Inflation
3-150 PSI inflation range with a 22 mm cylinder.

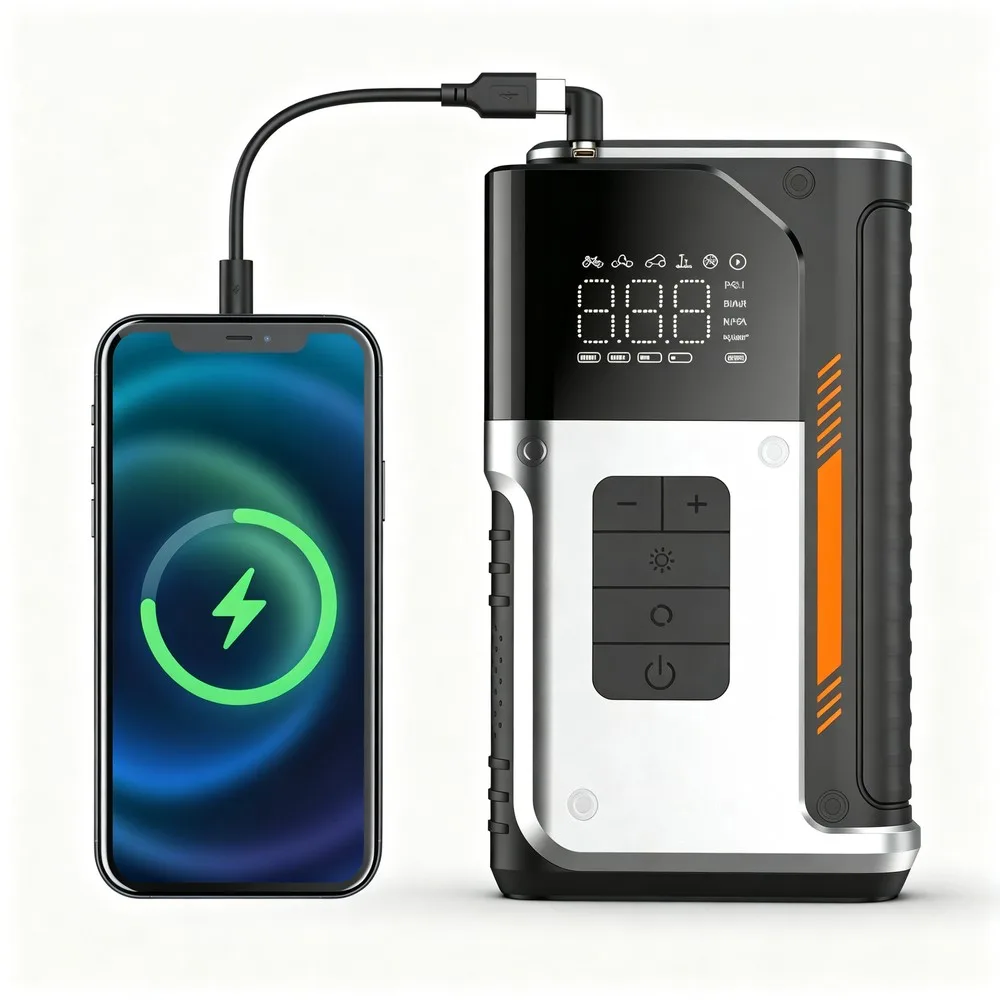

Power-Bank Function
Power-bank output is listed as part of the VJS-007 multifunction platform.

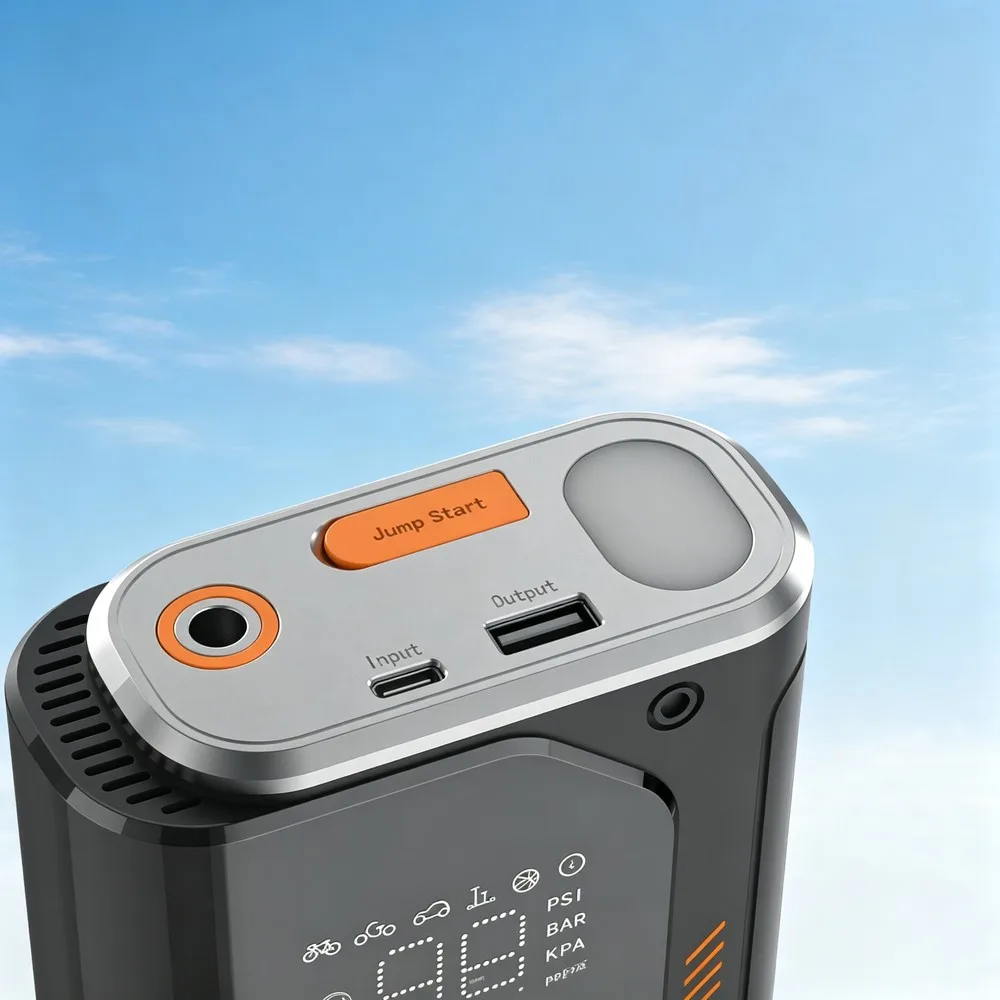

Ports & Controls
The current catalog lists a Type-C charging port together with pressure-checking and inflation functions.

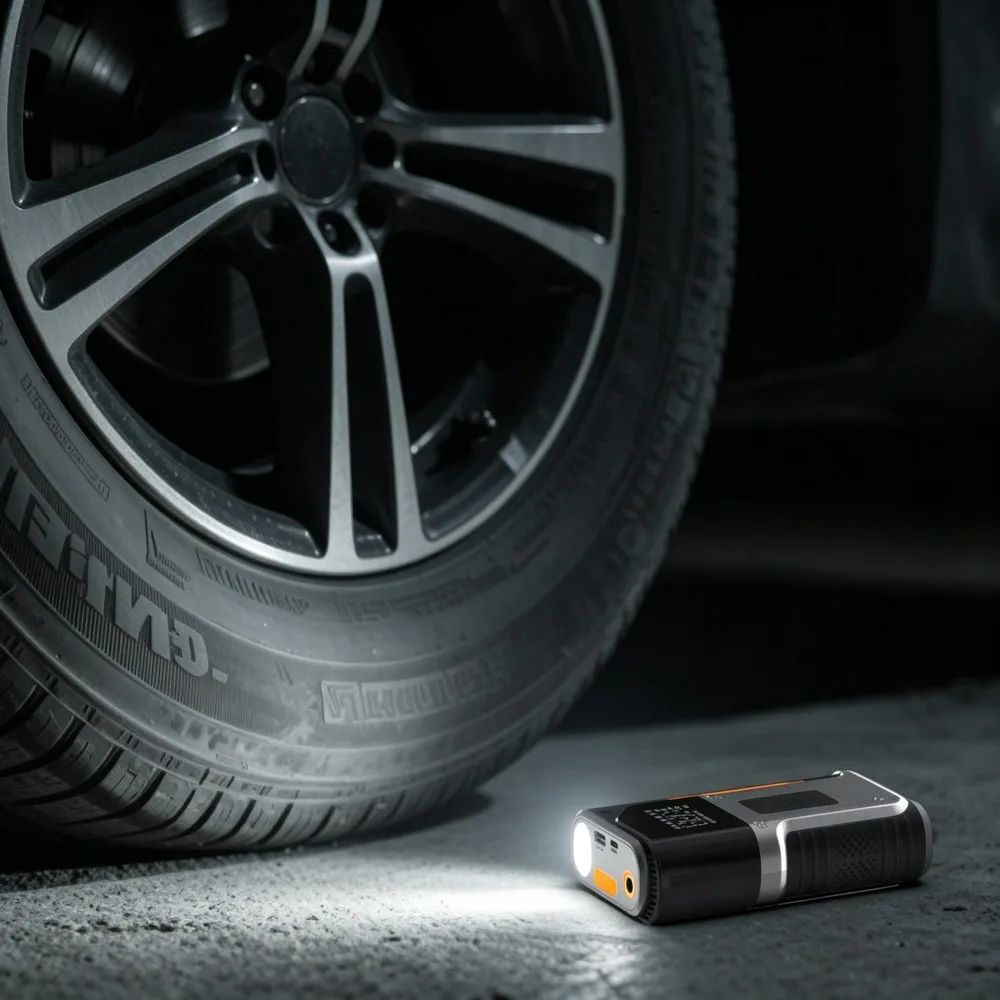

Emergency Lighting
LED light, strobe light and SOS signal-light functions are listed in the current catalog.
PRIVATE LABEL
Prepare VJS-007 for Your Brand
Branding and product presentation options can be reviewed according to the project scope and target market.
LogoProduct ColorPackagingManualAccessories
PACKAGING & LOGISTICS
Packaging Data for VJS-007
| Color Box | 21 × 20 × 6 cm |
|---|---|
| Gross Weight | 921 g |
| Carton Size | 44.5 × 33 × 43 cm |
| Pack Qty | 20 pcs |
| Carton G.W. | 19.8 kg |
COMPLIANCE & DOCUMENTATION
Catalog-Listed Documentation / Marks
CERoHSFCC
Documentation availability and applicability should be confirmed for the selected configuration and destination market before ordering.
RELATED PRODUCTS

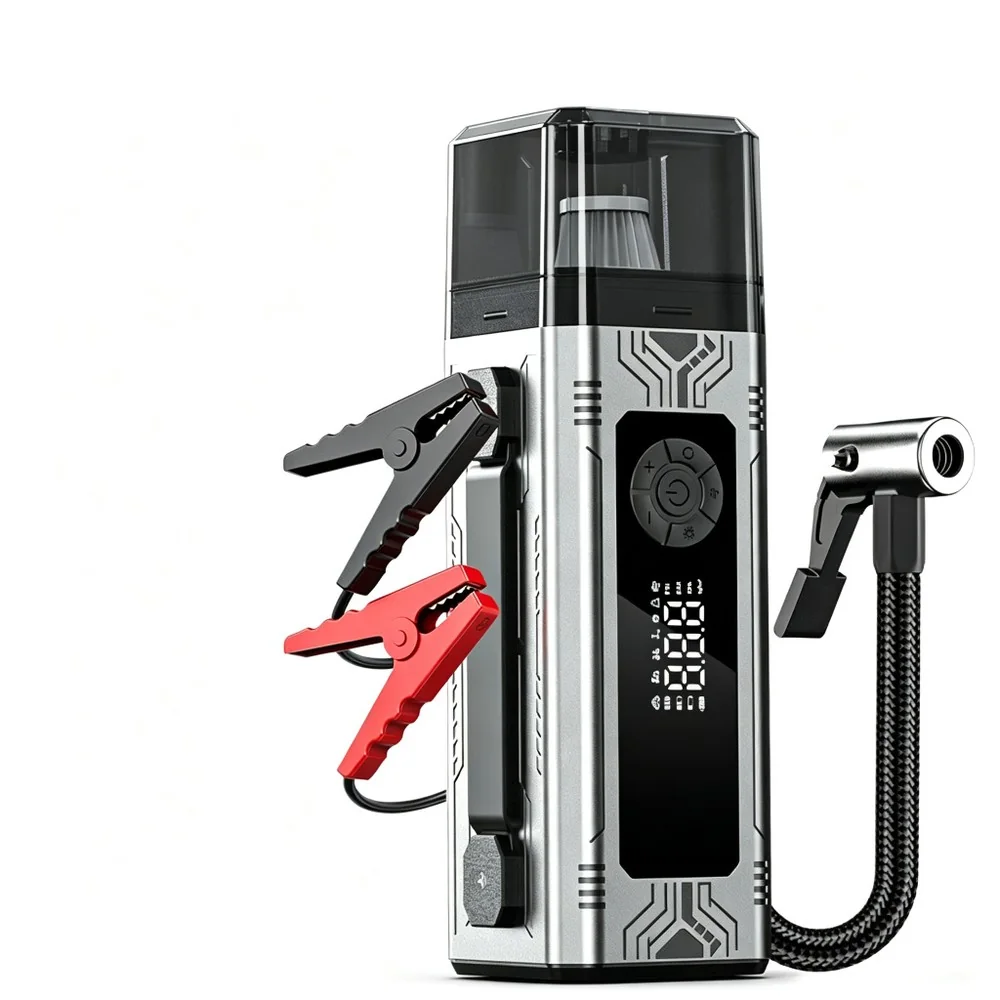

Compare Other Jump Starter Platforms
PRODUCT Q&A
VJS-007 Product & Sourcing Questions
Direct answers to common product-evaluation and B2B sourcing questions.
What are the listed starting and peak currents for VJS-007?
The current catalog lists 300A starting current and 800A peak current.
What is the VJS-007 tire inflation range?
The current catalog lists a 3-150 PSI inflation range with a 22 mm cylinder.
What battery configuration is listed for VJS-007?
The current catalog lists a 4 × 1500mAh battery configuration.
What is the listed product size?
The current catalog lists VJS-007 at 186 × 103 × 45 mm.
Does VJS-007 include a power-bank function?
Yes. Power-bank output is listed in the current VJS-007 catalog entry.
Does the current VJS-007 catalog list a vacuum function?
No vacuum function is listed in the current VJS-007 catalog entry. This statement reflects the current catalog only and should not be interpreted beyond the listed configuration.
What compliance marks are listed for VJS-007?
The current catalog lists CE, RoHS and FCC. Documentation availability should be confirmed for the selected configuration and destination market.
Can VJS-007 be prepared for a private-label project?
Branding, packaging, manual, color and selected accessory options can be reviewed according to project requirements.
Can I request a sample before bulk production?
Yes. A sample request can be submitted before the bulk-order project is finalized.
How are quality and production timing handled?
Production follow-up and agreed function, appearance and packaging checks can be arranged. Lead time depends on quantity, customization scope, packaging requirements and the agreed project schedule.
VJS-007
Evaluating VJS-007 for Your Product Line?
Tell us your target market, estimated quantity, branding requirements or any specifications you would like to confirm.
